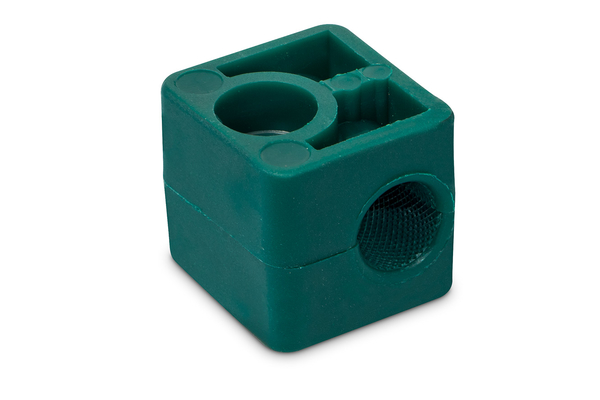

RS-C1-12
Pipe clamps, standard series

Product info

• Technical data

  Color:	green
  DIN:	DIN 3015-1
  Series:	C1
  Ø D metric [mm]:	12,0
  Width b [mm]:	28
  Height c [mm]:	27
  Depth e [mm]:	30
  Material:	Polypropylene; aluminum on request
  Product title long:	Basic material for pipe clamps
  clamp half clearance [mm]:	0.4
