Art. No.: HAI24SFH6-90S20
List number: 03510890

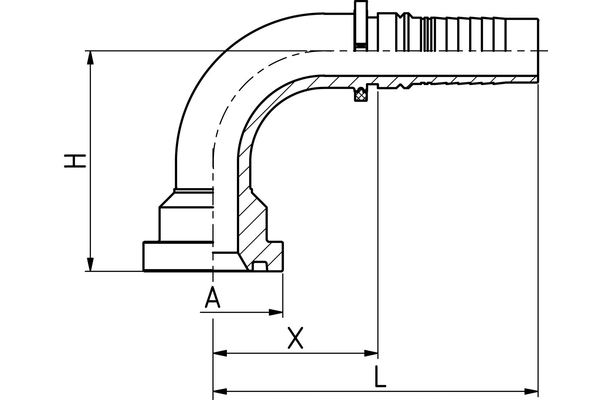

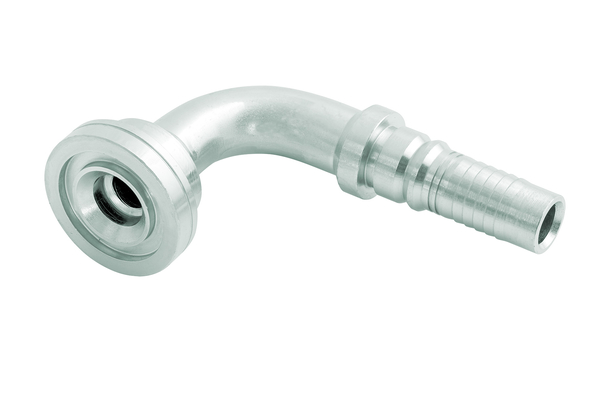

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
| DN: | 31 |
| Thread + standard: | Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI |
| Connection thread A: | 1.1/2" |
| X [mm]: | 92,9 |
| H [mm]: | 103,5 |
| Connection name Indunorm: | SFH 6 90° |
| Connection type: | SFS 6.000 PSI 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
