Art. No.: HAI16LORF90S16
List number: 03260110

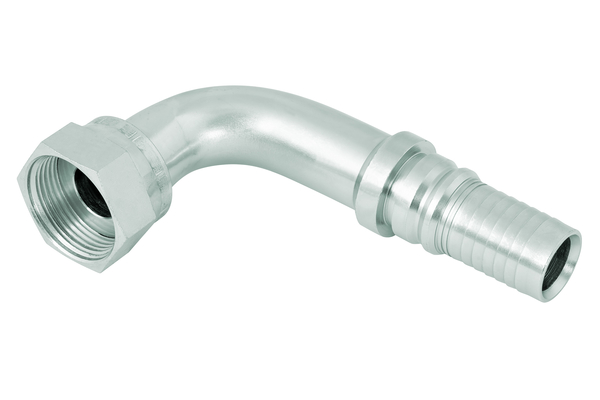

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

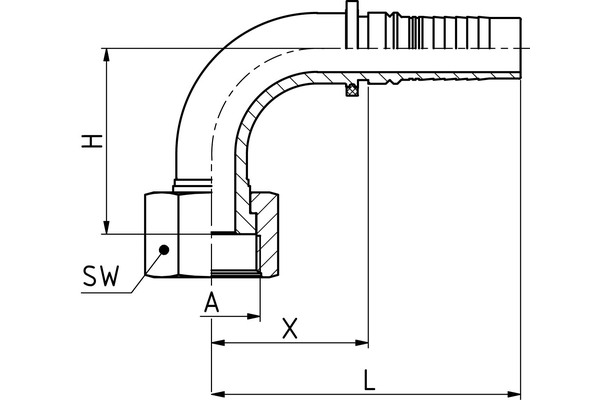

| DN: | 25 |
| Thread + standard: | UN/UNF female thread, flat face |
| Connection thread A: | 1-7/16-12 |
| X [mm]: | 75,2 |
| H [mm]: | 66,0 |
| SW1 [mm]: | 41 |
| Connection name Indunorm: | LORF 90° |
| Connection type: | ORFS with swivel nut 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
