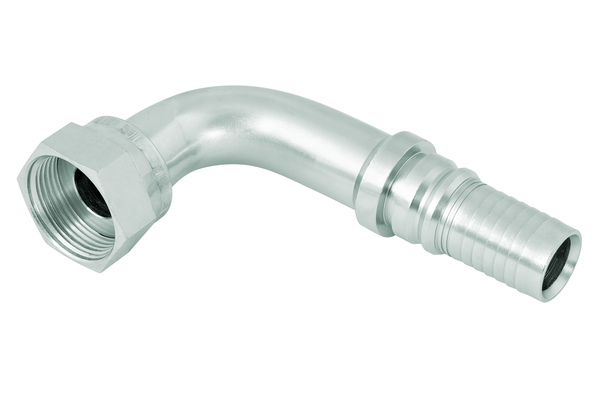

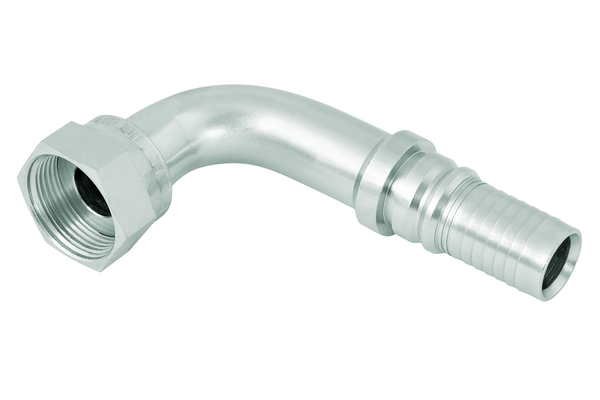

ORFS 90° with swivel nut (HAI)

Similar image
Similar image

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
HAI12LORF90S12
%
SALE
HAI16LORF90S12
%
SALE
HAI16LORF90S16
%
SALE
HAI16LORF90S16SL110
%
SALE
HAI20LORF90S16
%
SALE
HAI24LORF90S24
%
SALE
HAI20LORF90S20
%
SALE
DN
19
19
25
25
25
38
31
Thread + standard
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
Connection thread A
1-3/16-12
1-7/16-12
1-7/16-12
1.7/16"-12
1-11/16-12
2"-12
1.11/16"-12

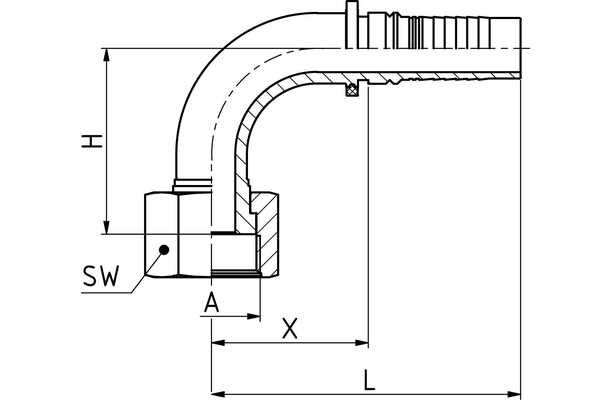

X [mm]
64,2
66,2
75,2
78,0
73,2
106,3
91,7
H [mm]
58,0
58,0
66,0
110,0
66,0
76,0
81,0
SW1 [mm]
36
41
41
41
50
60
50
Quantity


Product info

  • Technical data
    Connection name Indunorm: LORF 90°
    Connection type: ORFS with swivel nut 90°
    Construction form: 90°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI
