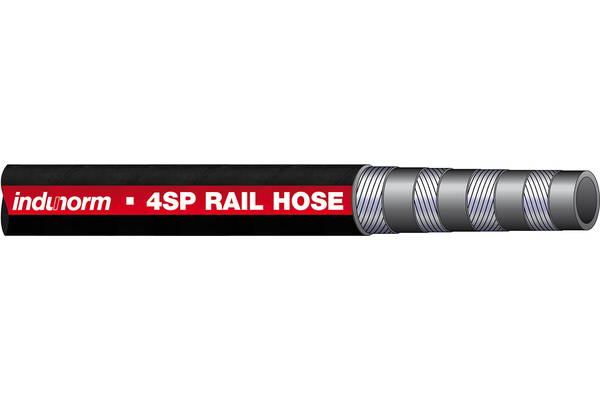

Spiral Hose 4SP RAIL HOSE

Hydraulic hose for high pressure applications, according to EN 856 - 4SP. Complies with EN 45545-2 (HL2-R23)

To accessories

Detail

Art. No.

4SP10RH

4SP12RH

4SP16RH

4SP20RH

4SP25RH

Outer Ø [mm]

21,1

24,2

27,9

32,0

38,9

Inner Ø [mm]

9,9

13,0

16,4

19,5

26,0

bending radius [mm]

180

230

250

300

340

working pressure [bar]

445

425

350

320

burst pressure [bar]

1780

1700

1400

1280

Safety factor

4:1

Standard ferrule

XV06D/4L

XV08D/4L

XV10D/4L

XV12D/4L

XV16D/4L

Standard ferrule stainless steel

XP-P3-06VA

XP-P3-08VA

XP-P3-10VA

XP-P3-12VA

XP-P3-16VA

Weight [kg]

0,70

0,85

1,11

1,41

1,86

Static test pressure [bar]

890

850

700

640

Braid diameter [mm]

17,4

20,6

24,2

27,9

35,1

Quantity

Product info

Technical data

Approvals:	EN856
Color cover:	black
Color inner tube:	black
Cover:	Abrasion and ozone resistant synthetic rubber
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Norm/Standards:	EN856 - 4SP, meets EN 45545-2 (HL2-R23)
Reinforcement:	high tensile steel spirals
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
application:	Rail transport and track laying machines requiring EN 45545-2
max operating temperature [°C]:	+100°C
number of layers:	4
