4SP25RH
Spiral hose 4SP RAIL HOSE

Product info

• Technical data

  DN:	25
  Outer Ø [mm]:	38,9
  Inner Ø [mm]:	26,0
  bending radius [mm]:	340
  working pressure [bar]:	320
  burst pressure [bar]:	1280
  Safety factor:	4:1
  Standard ferrule:	XV16D/4L

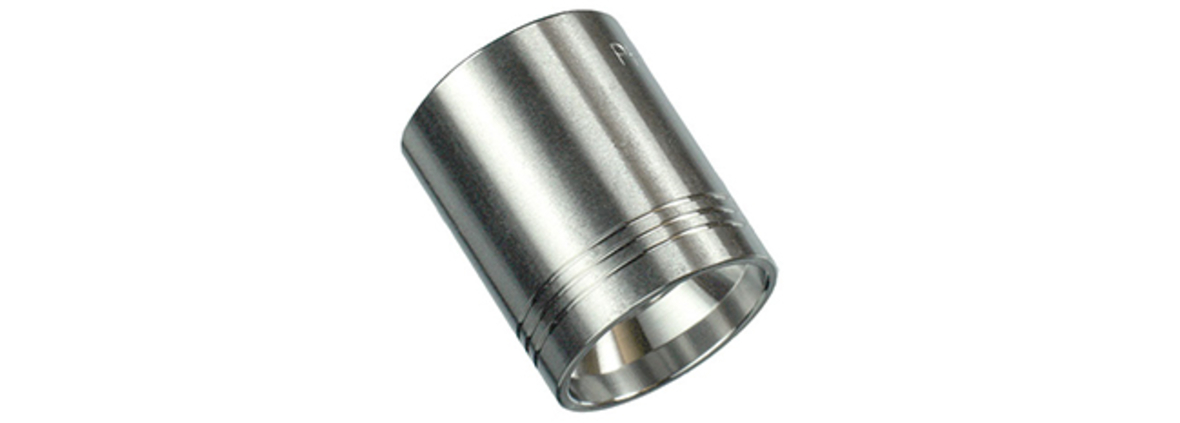

  Standard ferrule stainless steel:	XP-P3-16VA
  Weight [kg]:	1,86
  Static test pressure [bar]:	640
  Braid diameter [mm]:	35,1
  Approvals:	EN856
  Color cover:	black
  Color inner tube:	black
  Cover:	Abrasion and ozone resistant synthetic rubber
  Inner tube:	Oil resistant synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
  Norm/Standards:	EN856 - 4SP, meets EN 45545-2 (HL2-R23)
  Reinforcement:	high tensile steel spirals
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
  application:	Rail transport and track laying machines requiring EN 45545-2
  max operating temperature [°C]:	+100°C
  number of layers:	4
