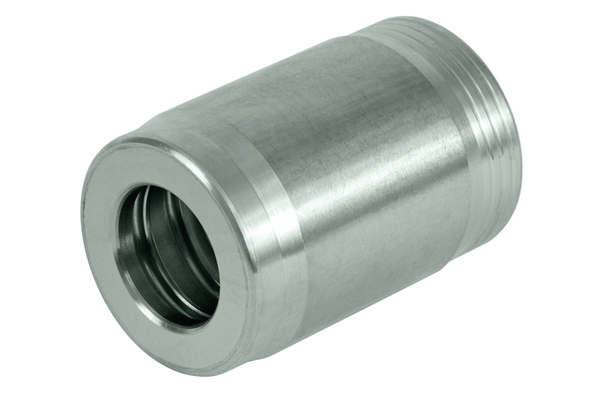

XV12D/4L
XV..D/4L

Product info

• Specifications

  DN:	19
  Size:	12
  Inch:	3/4

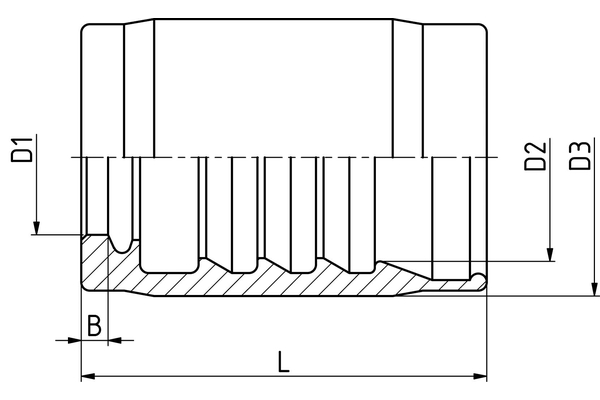

  D2 [mm]:	39,0
  Thread + standard:	Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
  L [mm]:	50,0
  b [mm]:	24,6
  D [mm]:	24,6
  D1 [mm]:	30,2
  Connection name Indunorm:	XV..D/4L
  Material:	Free cutting steel
  Material:	free cutting steel
  Resistance against red rust [h]:	500
  Resistance against white rust [h]:	96
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
  application:	Ferrule, skive
