XV..D/4L

Similar image
Similar image

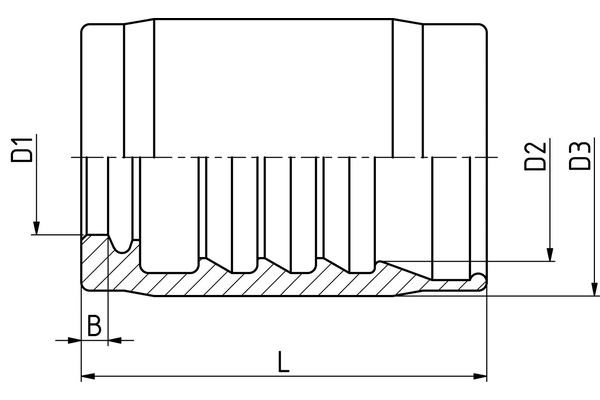

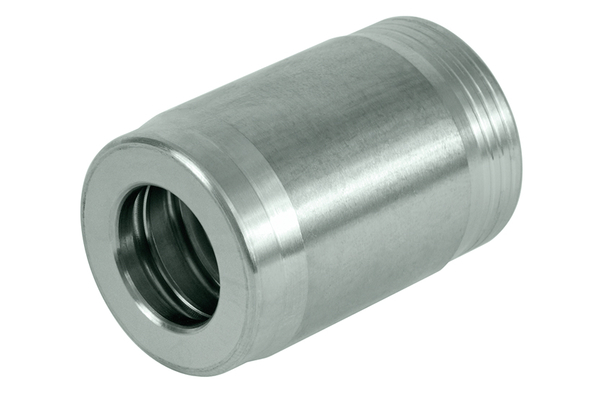

Swage ferrule, skive version (outside)

To accessories

Detail

Art. No.
XV03D
%
SALE
XV04D/4L
%
SALE
XV05D/4L
%
SALE
XV06D/4L
%
SALE
XV08D/4L
%
SALE
XV10D/4L
%
SALE
XV12D/4L
%
SALE
XV16D/4L
%
SALE
XV20D/4L
%
SALE
XV24D/4L
%
SALE
XV32D/4L
%
SALE
DN
05
06
08
10
12
16
19
25
31
38
51
Size
03
04
05
06
08
10
12
16
20
24
32
Inch
3/16
1/4
5/16
3/8
1/2
5/8
3/4
1
1.1/4
1.1/2
2
D2 [mm]
19,0
22,0
23,0
26,0
30,0
33,6
39,0
46,0
57,0
65,0
78,0
Thread + standard
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
L [mm]
27,3
34,0
31,0
38,0
40,0
40,0
50,0
60,0
65,0
73,0
80,0
b [mm]
2,0
10,2
12,7
14,5
18,5
21,6
24,6
30,9
38,8
44,4
57,3
D [mm]
9,4
10,2
12,7
14,5
18,5
21,6
24,6
30,9
38,8
44,4
57,3
D1 [mm]
12,3
15,5
17,2
18,9
22,2
26,4
30,2
36,7
47,0
53,7
66,6
Quantity


Product info

  • Specifications
    Connection name Indunorm: XV..D/4L
    Material: Free cutting steel
    Material: free cutting steel
    Resistance against red rust [h]: 500
    Resistance against white rust [h]: 96
    Surface: ZnNi
    Type of fittings: Universal series XV
    application: Ferrule, skive
