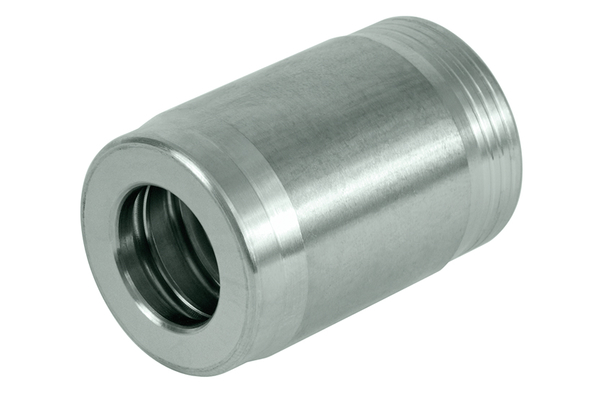

XV03D
XV..D/4L

Product info

• Technical data

  DN:	05
  Size:	03
  Inch:	3/16

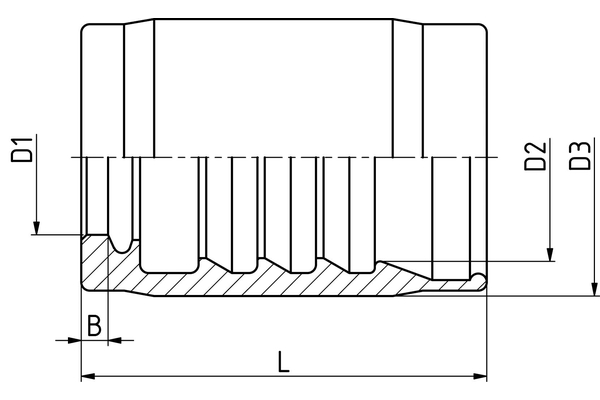

  D2 [mm]:	19,0
  Thread + standard:	Swage ferrule, skive (outside) for 2SN-hose, 2SC-hose (DN 16), 2HWS-hose, 3TE (DN 38), 4SP-hose, SP4Plus ®
  L [mm]:	27,3
  b [mm]:	2,0
  D [mm]:	9,4
  D1 [mm]:	12,3
  Connection name Indunorm:	XV..D/4L
  Material:	Free cutting steel
  Material:	free cutting steel
  Resistance against red rust [h]:	96
  Resistance against white rust [h]:	500
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
  application:	Ferrule, skive
