Art. No.: HAI20LORF90S20
List number: 03260240

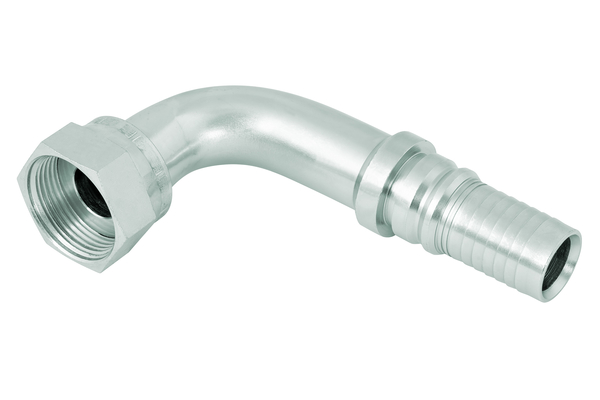

ORFS sealing form, with union nut, UN / UNF / UNS-Thread
| DN: | 31 |
| Thread + standard: | UN/UNF female thread, flat face |
| Connection thread A: | 1.11/16"-12 |

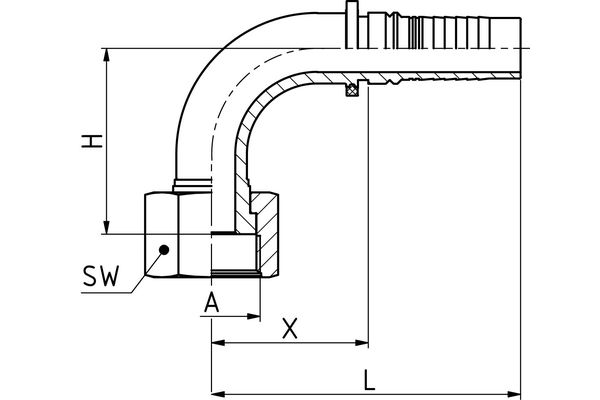

| X [mm]: | 91,7 |
| H [mm]: | 81,0 |
| SW1 [mm]: | 50 |
| Connection name Indunorm: | LORF 90° |
| Connection type: | ORFS with swivel nut 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
