Art. No.: HAI16LORF12DH
List number: 03660200

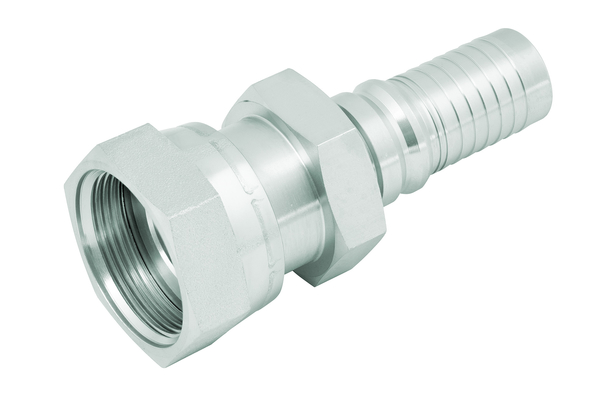

ORFS sealing form, with union nut, UN / UNF / UNS-Thread - double hexagon
| DN: | 19 |
| Thread + standard: | UN/UNF female thread, flat face |
| Connection thread A: | 1.7/16"-12 |

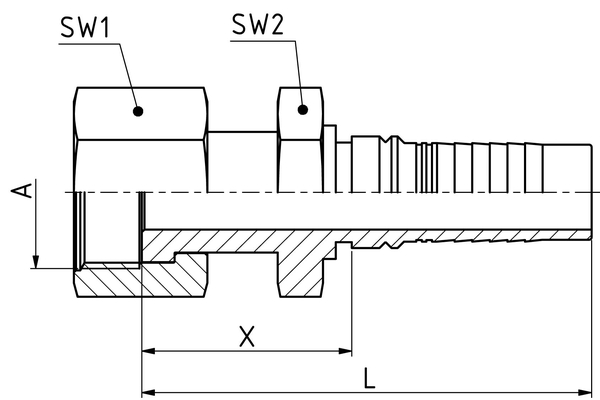

| X [mm]: | 43,0 |
| SW1 [mm]: | 36 |
| SW2 [mm]: | 41 |
| Connection name Indunorm: | LORF |
| Connection type: | ORFS with swivel nut |
| Construction form: | 0° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
