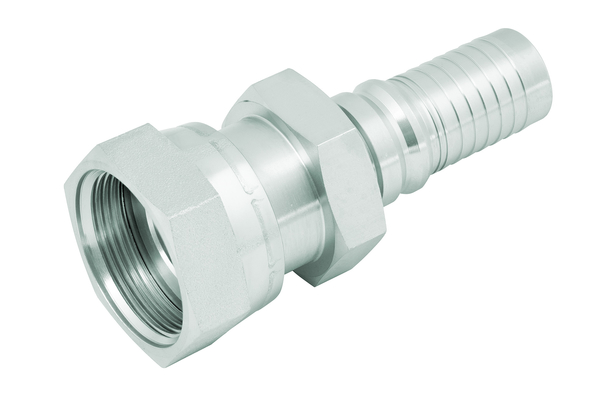

ORFS with swivel nut (DH)

Similar image
Similar image

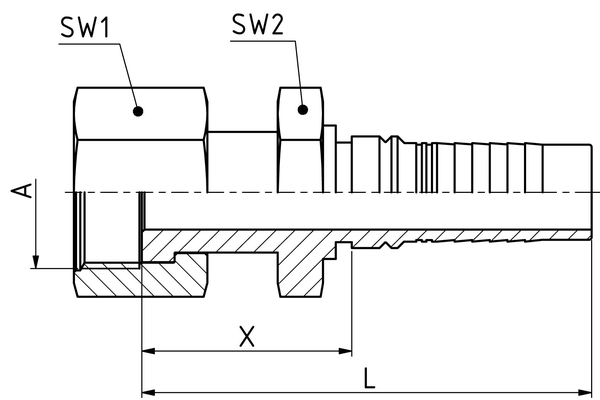

ORFS sealing form, with union nut, UN / UNF / UNS-Thread - double hexagon

To accessories

Detail

Art. No.
HAI10LORF10DH
%
SALE
HAI10LORF12DH
%
SALE
HAI12LORF12DH
%
SALE
HAI16LORF12DH
%
SALE
HAI12LORF16DH
%
SALE
HAI16LORF16DH
%
SALE
HAI20LORF16DH
%
SALE
HAI20LORF20DH
%
SALE
HAI24LORF24DH
%
SALE
DN
16
19
19
19
25
25
25
31
38
Thread + standard
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
Connection thread A
1"-14
1"-14
1.3/16"-12
1.7/16"-12
1.3/16"-12
1.7/16"-12
1.11/16"-12
1.11/16"-12
2"-12
X [mm]
37,5
37,5
40,0
43,0
42,0
47,0
49,0
47,2
52,0
SW1 [mm]
30
36
32
36
46
46
50
SW2 [mm]
36
41
36
41
50
50
60
Quantity


Product info

  • Technical data
    Connection name Indunorm: LORF
    Connection type: ORFS with swivel nut
    Construction form: 0°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI
