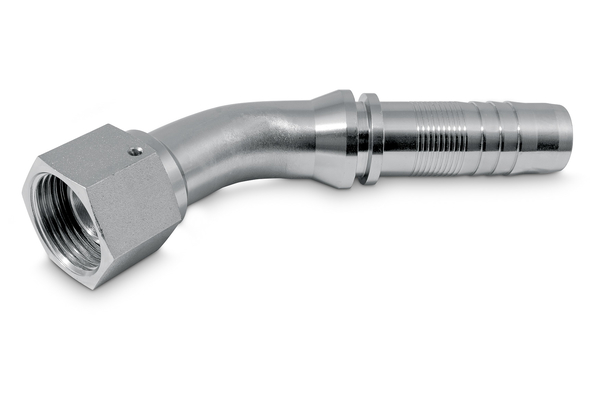

HAN20BOF45S20
DKOR 45° BOF 45°

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  Thread + standard:	BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
  Connection thread A:	1 1/4-11
  X [mm]:	90,4
  L1 [mm]:	186,0
  H [mm]:	40,0
  SW1 [mm]:	50
  Type of nut:	Union nut
  Connection name Indunorm:	BOF 45°
  Connection type:	DKOR 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Material O-Ring:	NBR
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
