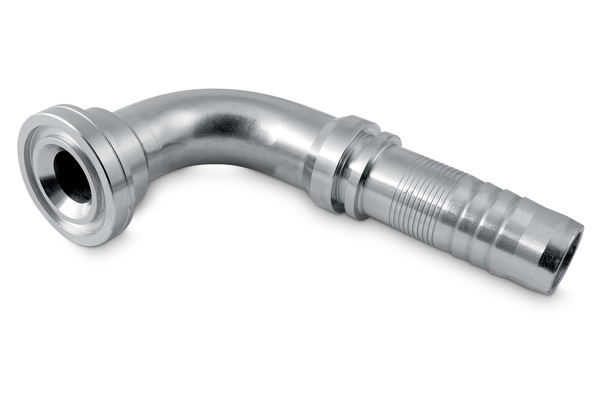

HAN16SFH6-90S16
SFS 6.000 90° PSI SFH 6 - 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI
  Flange size D2:	1
  X [mm]:	74,8
  L1 [mm]:	139,0
  H [mm]:	74,0
  D2 [mm]:	47,6
  Connection name Indunorm:	SFH 6 - 90°
  Connection type:	SFS 6.000 PSI 90°
  Construction form:	90°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Surface:	Cr3
  Type of fittings:	Multi spiral program HAN fittings (no skive)
