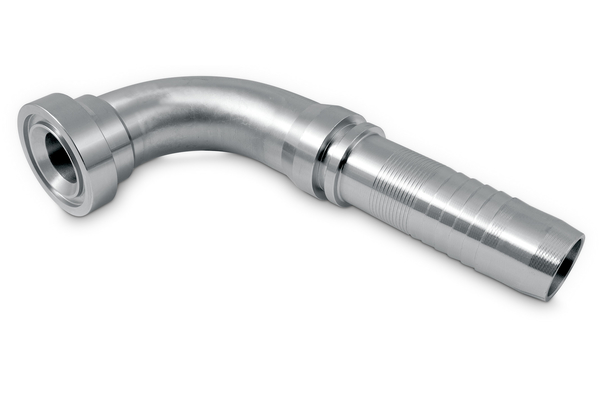

SFS CAT 90° (HAN)

Detail

DN
19
19
25
25
32
32
Size
12
12
16
16
20
20
Inch
3/4
3/4
1
1
1.1/4
1.1/4
Thread + standard
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange size D2
3/4
1
1
1.1/4
1.1/4
1.1/2
X [mm]
67,2
68,7
84,8
79,8
97,0
97,0
L1 [mm]
122,0
124,0
149,0
144,0
193,0
193,0
H [mm]
67,0
70,0
79,0
82,5
93,0
101,0
L [mm]
122,0
D2 [mm]
41,3
47,6
47,6
54,0
54,0
63,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 9 - 90°
    Connection type: SFS CAT 90°
    Construction form: 90°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Surface: Cr3
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
