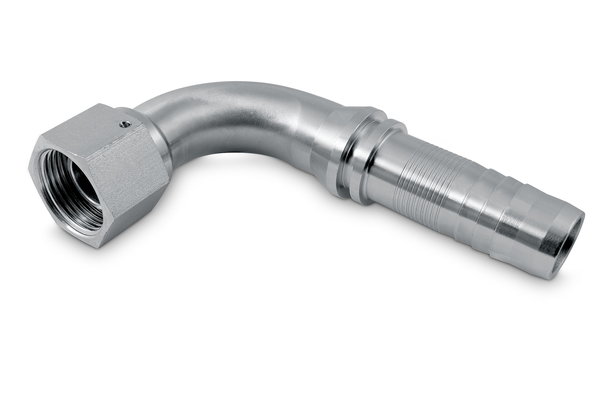

ORFS 90° with swivel nut (HAN)

Similar image
Similar image

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HAN16BOF90S12
%
SALE
HAN12LORF90S12
%
SALE
HAN16LORF90S12
%
SALE
HAN16LORF90S16
%
SALE
HAN20LORF90S20
%
SALE
HAN20BOF90S16
%
SALE
DN
19
19
19
25
32
25
Size
12
12
16
20
Inch
3/4
3/4
1
1.1/4
Thread + standard
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
UN/UNF female thread, flat sealing
UN/UNF female thread, flat sealing
UN/UNF female thread, flat sealing
UN/UNF female thread, flat sealing
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
Connection thread A
1-11
1.3/16-12
1.7/16-12
1.7/16-12
1.11/16-12
1.1/4-11

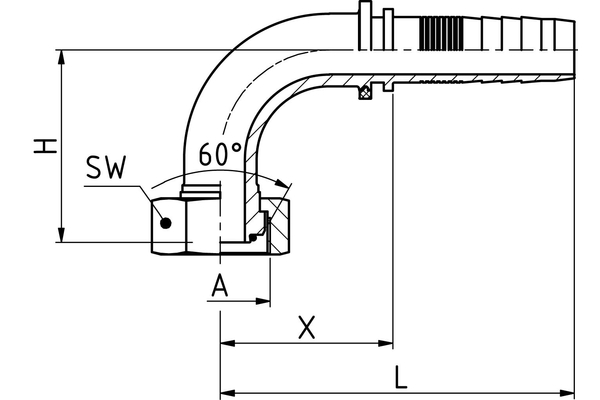

X [mm]
67,6
69,6
79,6
102,4
L1 [mm]
123,0
125,0
144,0
198,0
H [mm]
58,0
58,0
66,0
81,0
L [mm]
123,0
125,0
144,0
SW1 [mm]
36
36
41
50
Type of nut
Crimp
Crimp
Crimp
Crimp
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BOF 90°
    Connection type: DKOR 90°
    Construction form: 90°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Type of fittings: Multi spiral program HAN fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
