AGN (HNS)v

Similar image
Similar image

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread

To accessories

Detail

Art. No.
HNS12NM12
%
SALE
HNS16NM16
%
SALE
HNS20NM20
%
SALE
HNS24NM24
%
SALE
HNS32NM32
%
SALE
DN
19
25
31
38
51
Size
12
16
20
24
32
Inch
3/4"
1"
1.1/4"
1.1/2"
2"
Connection thread A
3/4"-14
1"-11 1/2
1.1/4"-11 1/2
1.1/2"-11 1/2
2"-11 1/2

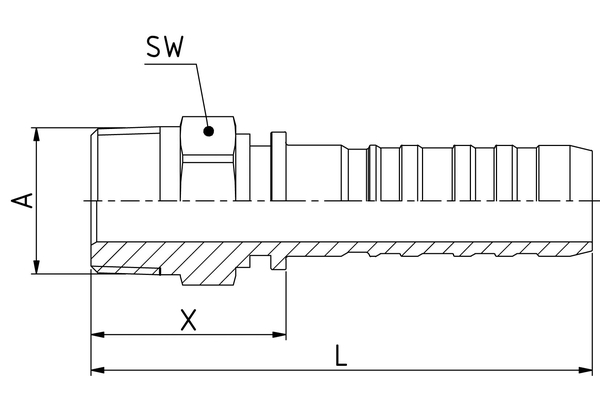

X [mm]
36,1
47,1
50,9
54,5
63,4
SW1 [mm]
27
36
46
50
65
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: NM
    Connection type: AGN
    Construction form: 0°
    Material: Free cutting steel
    Type of fittings: Multi spiral program HNS fittings (no skive)
