DKOS (HNS)

Similar image
Similar image

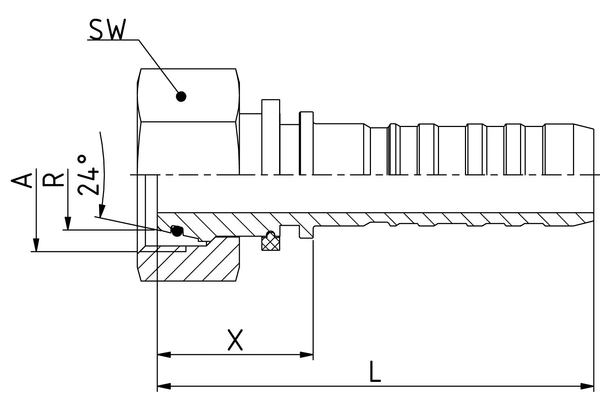

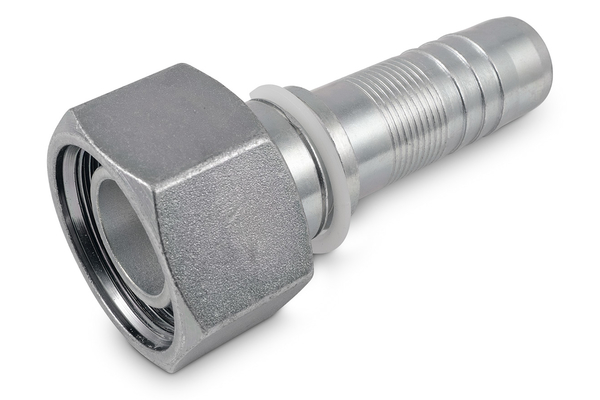

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HNS30MSOF20-12
%
SALE
HNS36MSOF25-12SW46
%
SALE
HNS36MSOF25-12SW41
%
SALE
HNS36MSOF25-16
%
SALE
HNS42MSOF30-16
%
SALE
HNS42MSOF30-20
%
SALE
HNS52MSOF38-20
%
SALE
HNS52MSOF38-24
%
SALE
DN
19
19
19
25
25
31
31
38
Size
12
12
12
16
16
20
20
24
Inch
3/4"
3/4"
3/4"
1"
1"
1.1/4"
1.1/4"
1.1/2"
Connection thread A
M30x2,0
M36x2,0
M36x2,0
M36x2,0
M42x2,0
M42x2,0
M52x2,0
M52x2,0
Pipe Ø R [mm]
20
25
25
25
30
30
38
38
X [mm]
37,4
41,7
41,7
46,6
45,8
50,0
50,0
57,0
SW1 [mm]
36
46
41
46
50
50
60
60
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF
    Connection type: DKOS
    Construction form: 0°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Type of fittings: Multi spiral program HNS fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!

Practical tip

At higher temperatures the NBR O-ring can easily be replaced by a Viton(R) O-ring, see XV-SET-OR..L/S-V.
