Art. No.: HNS26JF90S20
List number: 03253060

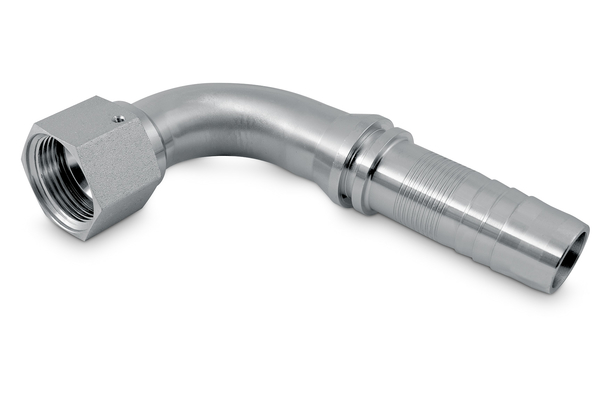

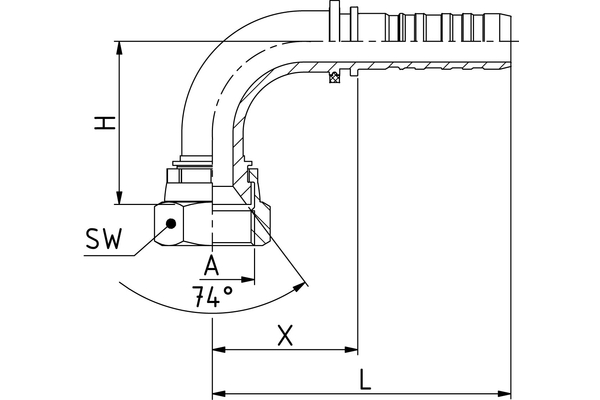

JIC threaded adapter, 74 ° cone with union nut, UN/UNF thread
| DN: | 31 |
| Size: | 20 |
| Inch: | 1.1/4" |
| Connection thread A: | 1.5/8"-12 |
| X [mm]: | 84,0 |
| H [mm]: | 78,0 |
| SW1 [mm]: | 50 |
| Connection name Indunorm: | JF 90° |
| Connection type: | DKJ 90° |
| Construction form: | 90° |
| Material: | Free cutting sT-l |
| Material: | Free cutting sT-l |
| Type of fittings: | Multi spiral program HNS fittings (no skive) |
| degree: | 90 |
Reserve technical changes.
