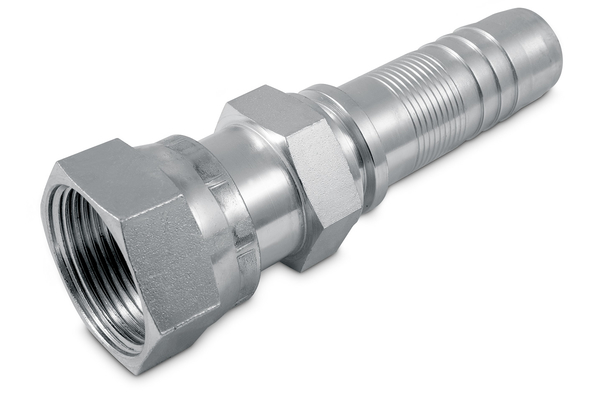

ORFS with swivel nut (HNS)

Similar image
Similar image

High pressure hose fittings

To accessories

Detail

Art. No.
HNS10LORF10DH
%
SALE
HNS12LORF12DH
%
SALE
HNS16LORF12DH
%
SALE
HNS12LORF16DH
%
SALE
HNS16LORF16DH
%
SALE
HNS20LORF16DH
%
SALE
HNS20LORF20DH
%
SALE
HNS24LORF24DH
%
SALE
DN
16
19
19
25
25
25
31
38
Size
10
12
12
16
16
16
20
24
Inch
5/8"
3/4"
3/4"
1"
1"
1"
1.1/4"
1.1/2"
Connection thread A
1"-14
1.3/16"-12
1.7/16"-12
1.3/16“-12
1.7/16"-12
1.11/16"-12
1.11/16"-12
2"-12

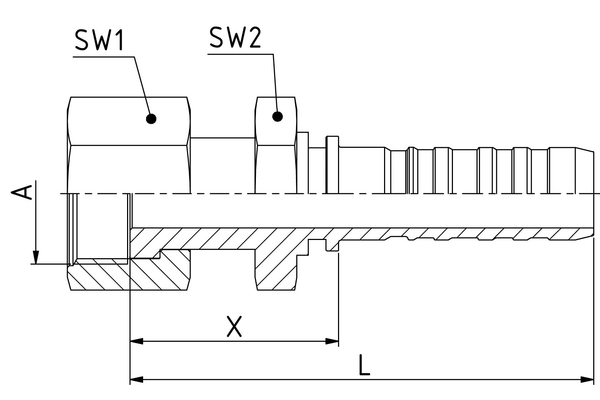

X [mm]
40,3
44,1
50,1
51,1
53,1
54,1
56,0
61,5
SW1 [mm]
24
30
36
30
36
41
46
50
SW2 [mm]
30
36
41
36
41
50
50
60
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: LORF
    Connection type: ORFS sealing form with union nut
    Construction form: 0°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Type of fittings: Multi spiral program HNS fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!
