Product info
-
Technical data

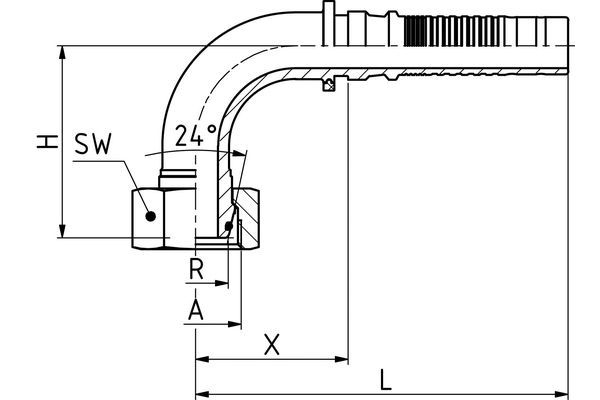

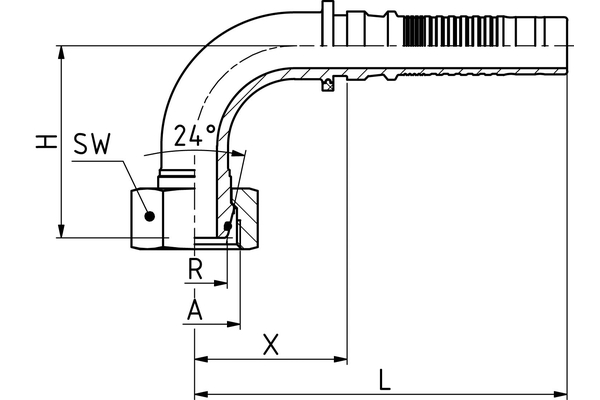

DN: 19 Size: 12 Inch: 3/4 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series Connection thread A: M36x2 X [mm]: 54,5 L1 [mm]: 127,0 H [mm]: 58,5 Outer diameter O-ring [mm]: 22,0 SW1 [mm]: 41 Type of nut: Union nut Connection name Indunorm: MSOF 90° Connection type: DKOS 90° Construction form: 90° Material: Free cutting steel, O-Ring: NBR Material O-Ring: NBR Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: ZnNi Type of fittings: Multispiral series HV
