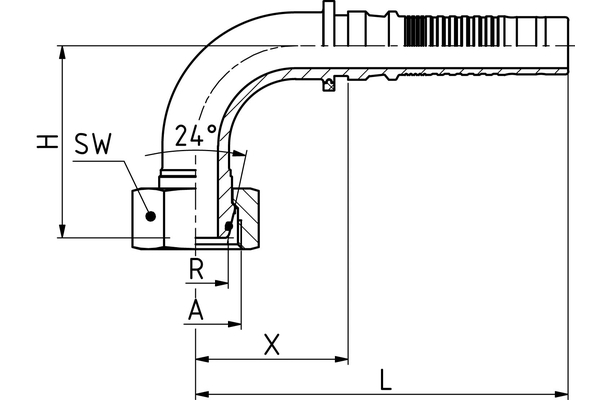

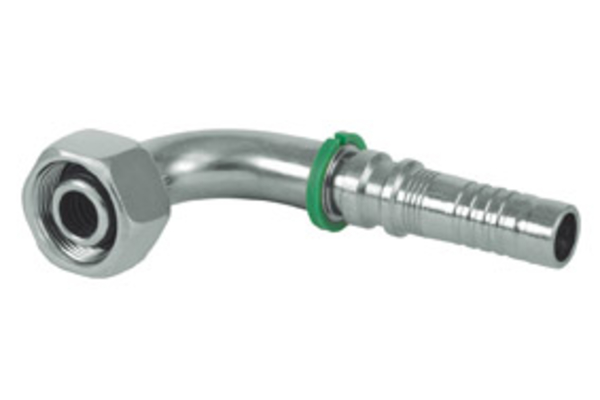

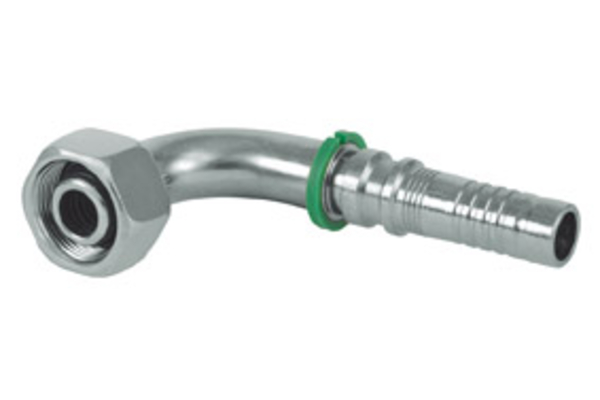

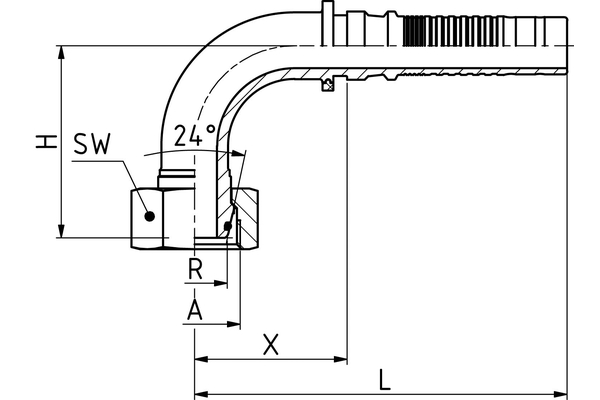

DKOS 90° (HV)

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HV-S30MSOF20-90S10
%
SALE
HV30MSOF20-90S12
%
SALE
HV-S36MSOF25-90S12
%
SALE
HVS36MSOF25-90S12-41
%
SALE
HV36MSOF25-90S16
%
SALE
HV-S42MSOF30-90S16
%
SALE
HV52MSOF38-90S16
%
SALE
HV42MSOF30-90S20
%
SALE
HV-S52MSOF38-90S20
%
SALE
HV24MSOF16-90S08
%
SALE
DN
16
19
19
19
25
25
25
31
31
12
Size
10
12
12
12
16
16
16
20
20
Inch
5/8
3/4
3/4
3/4
1
1
1
1.1/4
1.1/4
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Connection thread A
M30x2
M30x2
M36x2
M36x2
M36x2
M42x2
M52x2
M42x2
M52x2
M24x1,5
X [mm]
46,0
55,5
54,5
54,5
70,0
68,0
80,5
83,0
84,5
L1 [mm]
103,5
128,0
127,0
127,0
149,5
147,5
160,0
162,0
162,5
H [mm]
51,5
59,0
58,5
58,5
71,0
74,0
82,5
82,0
87,0
Outer diameter O-ring [mm]
17,5
17,5
22,0
22,0
22,0
27,0
33,0
27,0
33,0
SW1 [mm]
36
36
46
41
46
50
60
50
60
30
Type of nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF 90°
    Connection type: DKOS 90°
    Construction form: 90°
    Material: Free cutting steel, O-Ring: NBR
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV

Practical tip

Using the nipple assembly tool NEV6-50H-2 together with accessory NEV-WFB-2 elbow fittings can be installed with little effort.
