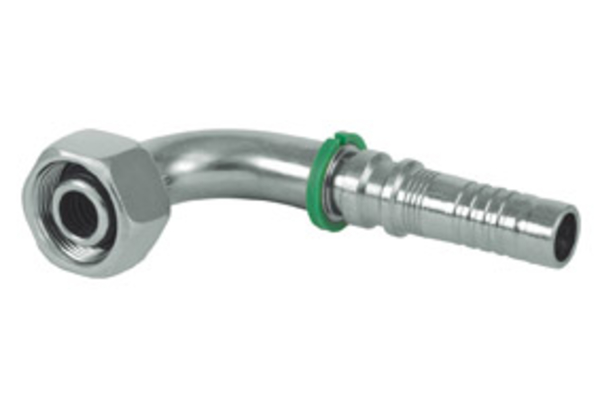

HV-S52MSOF38-90S20
DKOS 90° MSOF 90°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
  Connection thread A:	M52x2

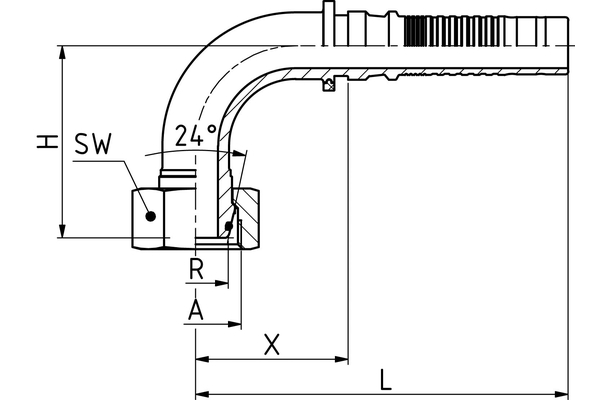

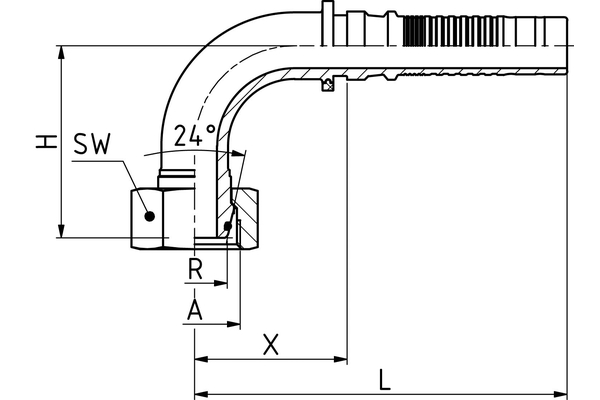

  X [mm]:	84,5
  L1 [mm]:	162,5
  H [mm]:	87,0
  Outer diameter O-ring [mm]:	33,0
  SW1 [mm]:	60
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKOS 90°
  Construction form:	90°
  Material:	Free cutting steel, O-Ring: NBR
  Material O-Ring:	NBR
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
