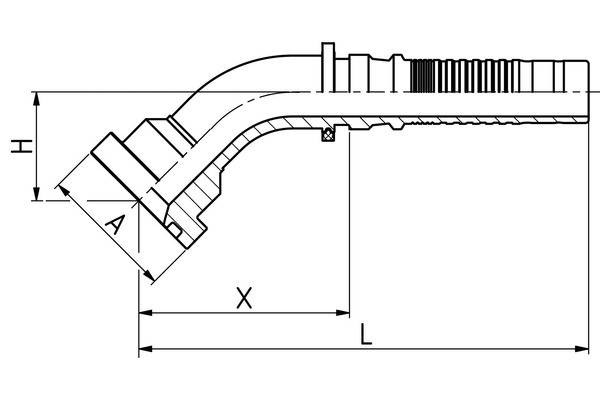

HV-S12SFH9-45S12
SFS CAT 45° SFH 9 - 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Flange head (CAT) high pressure series
  Flange size D2:	3/4"
  X [mm]:	80,0
  L1 [mm]:	152,5
  H [mm]:	33,5
  D2 [mm]:	41,3
  Connection name Indunorm:	SFH 9 - 45°
  Connection type:	SFS CAT 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
