R08B90S08
DKR 90° BF 90°

Product info

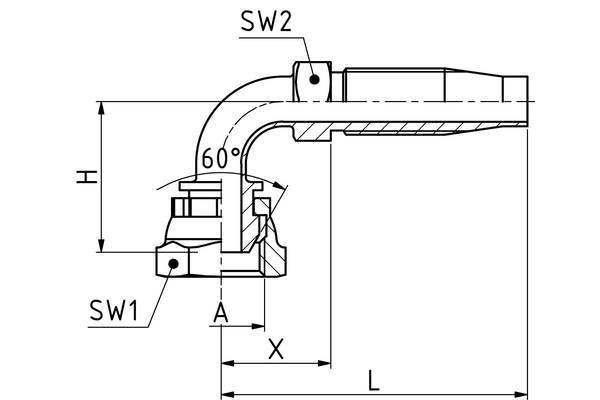

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
  Connection thread A:	G 1/2"-14
  X [mm]:	29,5
  L1 [mm]:	76,0
  H [mm]:	35,0
  SW1 [mm]:	27
  SW2 [mm]:	19
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
