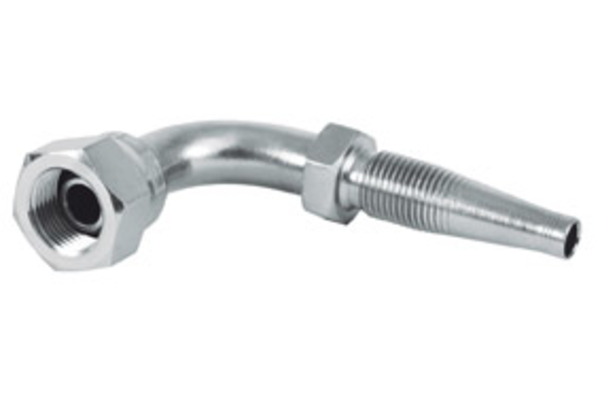

DKR 90° (R)

Similar image
Similar image

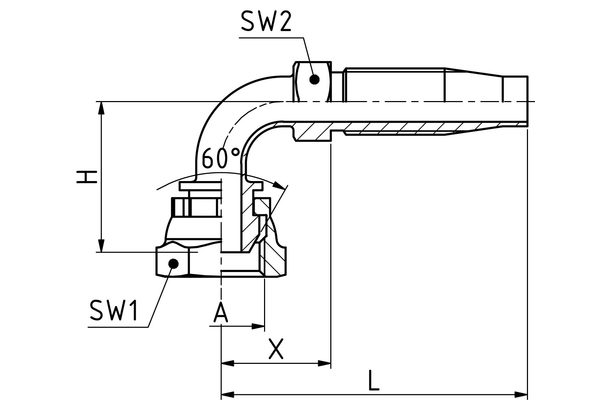

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail

Art. No.
R06B90S06
%
SALE
R08B90S08
%
SALE
DN
10
12
Size
06
08
Inch
3/8
1/2
Thread + standard
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
Connection thread A
G 3/8"-19
G 1/2"-14
X [mm]
29,0
29,5
L1 [mm]
74,0
76,0
H [mm]
32,5
35,0
SW1 [mm]
22
27
SW2 [mm]
17
19
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BF 90°
    Connection type: DKR 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: zinc plated, chrom 6-free
    Type of fittings: Reusable series R
