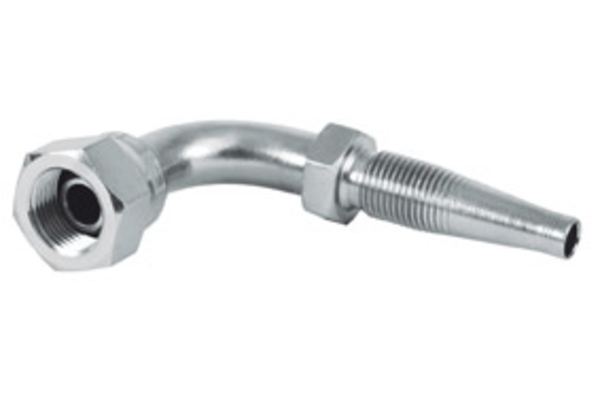

R06B90S06
DKR 90° BF 90°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	BSP sealing head, 60 ° cone with O-ring and union nut, BSP thread
  Connection thread A:	G 3/8"-19

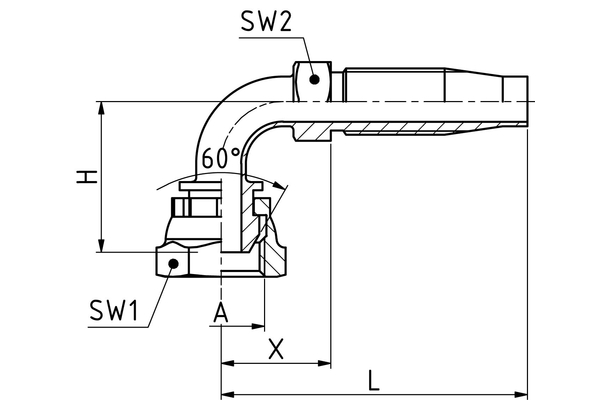

  X [mm]:	29,0
  L1 [mm]:	74,0
  H [mm]:	32,5
  SW1 [mm]:	22
  SW2 [mm]:	17
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
