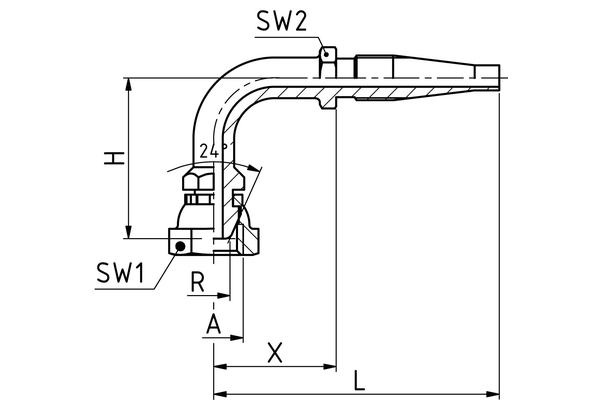

R14MSF08-90S04 - DKL 90° MSF | Indunorm Hydraulik Shop

DN:	06
Size:	04
Inch:	1/4
Thread + standard:	Sealing cone with union nut light series
Pipe Ø R [mm]:	8
X [mm]:	39,7
L1 [mm]:	79,4
H [mm]:	39,5
SW1 [mm]:	17
SW2 [mm]:	17
Type of nut:	CR
Connection name Indunorm:	MSF
Connection type:	DKL 90°
Material:	Free cutting steel
Resistance against red rust [h]:	144
Resistance against white rust [h]:	72
Surface:	zinc plated, chrom 6-free
Type of fittings:	Reusable series R

R14MSF08-90S04
DKL 90° MSF
