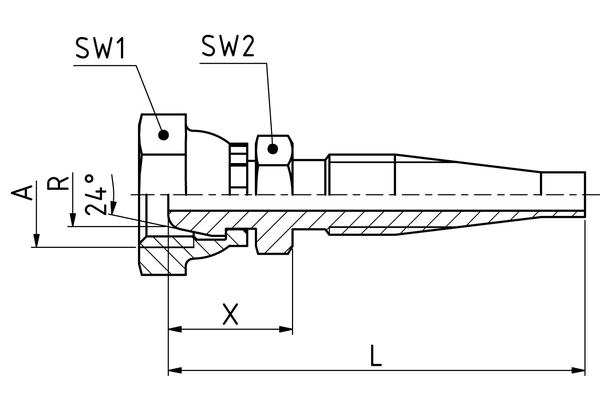

R30MSF22-12
DKL MSF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  Connection thread A:	M30x2
  Pipe Ø R [mm]:	22
  X [mm]:	29,8
  L1 [mm]:	90,1
  SW1 [mm]:	36
  SW2 [mm]:	30
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
