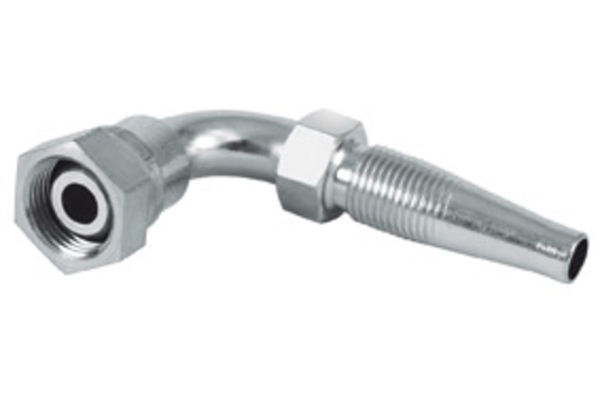

R24MSF16-90S08
DKS 90° MSF 90°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M24x1,5

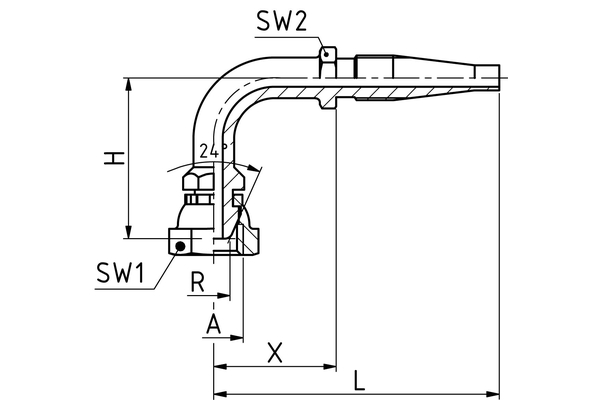

  Pipe Ø R [mm]:	16
  X [mm]:	38,3
  L1 [mm]:	85,9
  H [mm]:	49,7
  SW1 [mm]:	30
  SW2 [mm]:	30
  Type of nut:	CR
  Connection name Indunorm:	MSF
  Connection type:	DKS 90°
  Material:	Free cutting sT-l
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
