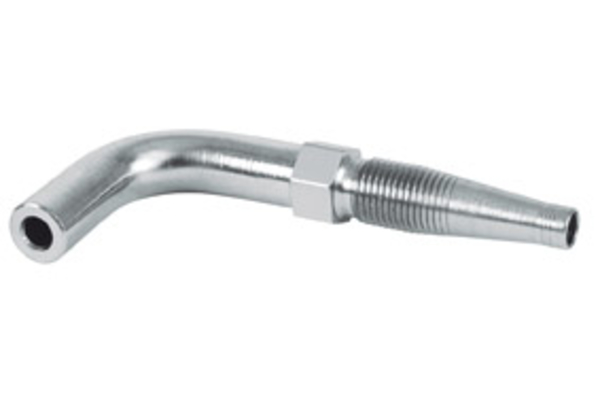

R06MOSE90S04
BEL 90° MOSE 90°

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, light series

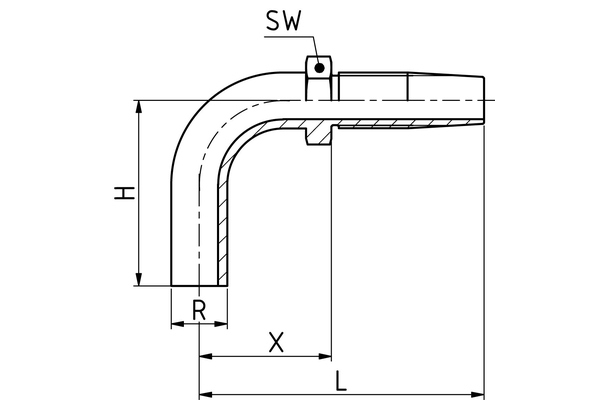

  Pipe Ø R [mm]:	6
  X [mm]:	25,5
  L1 [mm]:	64,5
  H [mm]:	46,0
  SW1 [mm]:	13
  Connection name Indunorm:	MOSE 90°
  Connection type:	BEL 90° RSL
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
