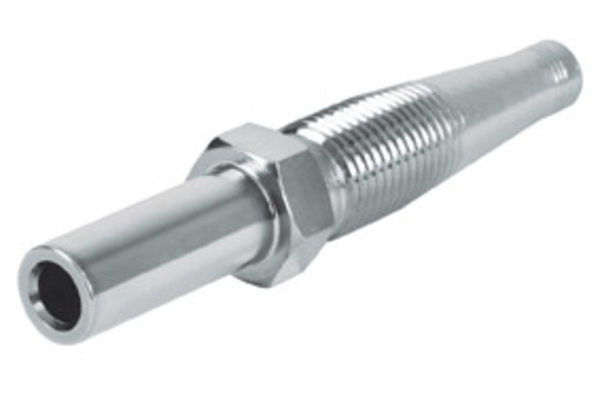

R10MOSE04
BES MOSE

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

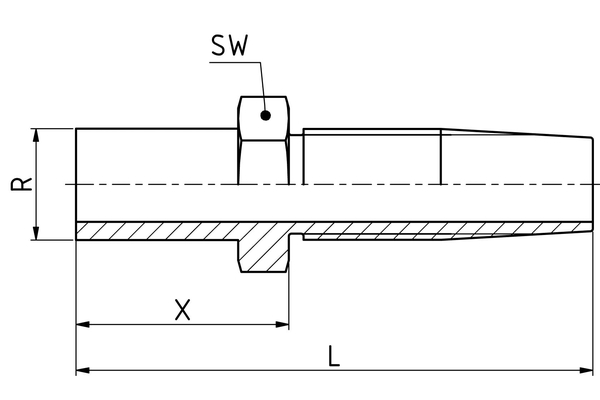

  Pipe Ø R [mm]:	10
  X [mm]:	33,9
  L1 [mm]:	73,6
  SW1 [mm]:	13
  Connection name Indunorm:	MOSE
  Connection type:	BES RSS
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
