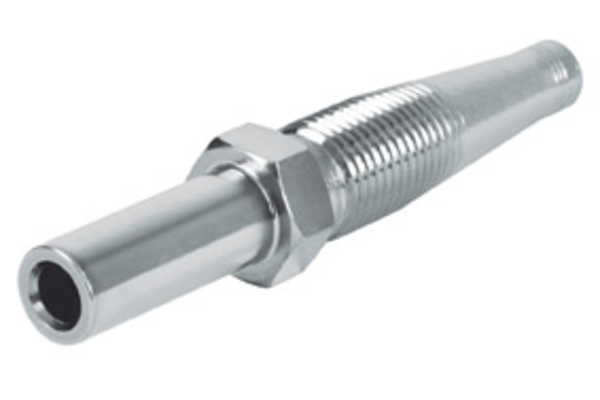

R25MOSE12
BES MOSE

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

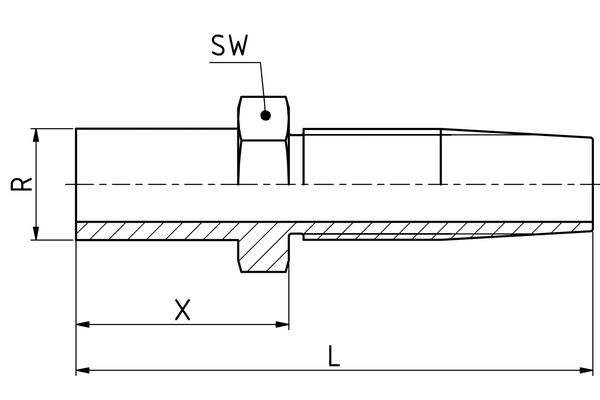

  Pipe Ø R [mm]:	25
  X [mm]:	51,4
  L1 [mm]:	111,8
  SW1 [mm]:	27
  Connection name Indunorm:	MOSE
  Connection type:	BES RSS
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	zinc plated, chrom 6-free
  Type of fittings:	Reusable series R
