AGR

Similar image
Similar image

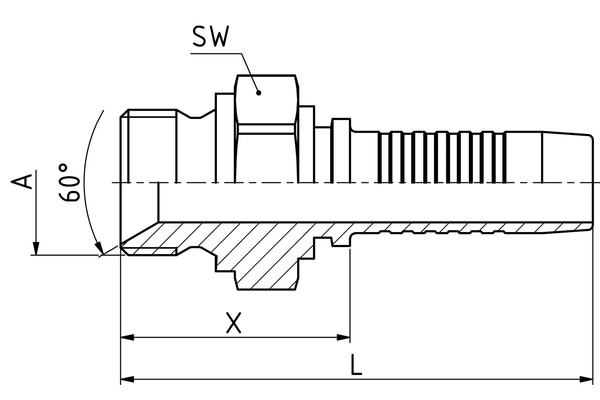

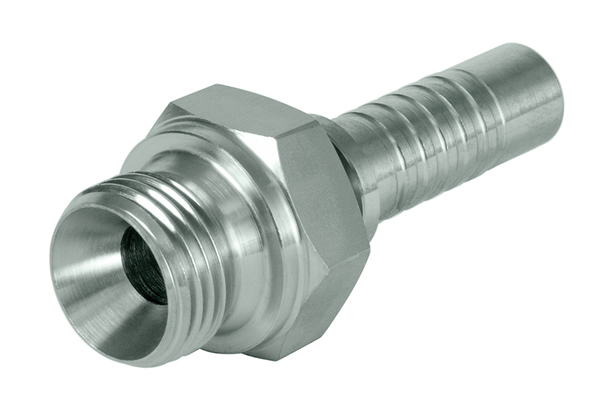

BSP-threaded adapter, 60°-cone with BSP male thread

To accessories

Detail

Art. No.
XV02BM04
%
SALE
XV04BM04
%
SALE
XV06BM04
%
SALE
XV04BM05
%
SALE
XV06BM05
%
SALE
XV06BM06
%
SALE
XV08BM06
%
SALE
XV06BM08
%
SALE
XV08BM08
%
SALE
XV10BM08
%
SALE
XV12BM08
%
SALE
XV08BM10
%
SALE
XV10BM10
%
SALE
XV12BM10
%
SALE
XV12BM12
%
SALE
XV16BM12
%
SALE
XV16BM16
%
SALE
XV20BM20
%
SALE
XV24BM24
%
SALE
XV32BM32
%
SALE
DN
06
06
06
08
08
10
10
12
12
12
12
16
16
16
19
19
25
31
38
51
Size
04
04
04
05
05
06
06
08
08
08
08
10
10
10
12
12
16
20
24
32
Inch
1/4
1/4
1/4
5/16
5/16
3/8
3/8
1/2
1/2
1/2
1/2
5/8
5/8
5/8
3/4
3/4
1
1.1/4
1.1/2
2
Thread + standard
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
BSP-threaded adapter, 60°-cone with BSP male thread
Connection thread A
G 1/8"
G 1/4"
G 3/8"
G 1/4"
G 3/8"
G 3/8"
G 1/2"
G 3/8"
G 1/2"
G 5/8"
G 3/4"
G 1/2"
G 5/8"
G 3/4"
G 3/4"
G 1"
G 1"
G 1.1/4"
G 1.1/2"
G 2"
X [mm]
20,5
25,5
26,6
25,5
26,6
30,0
33,5
27,8
30,9
36,5
34,3
30,9
36,5
37,5
35,0
37,1
38,1
47,5
52,5
60,0
L1 [mm]
47,0
52,0
53,1
52,0
53,1
63,5
67,0
60,3
63,4
72,0
66,8
69,4
75,0
76,0
79,3
81,4
92,4
105,4
120,5
135,5
SW1 [mm]
15
19
22
19
22
22
27
22
27
30
32
27
30
32
32
41
41
50
55
70
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BM
    Connection type: AGR
    Construction form: 0°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
