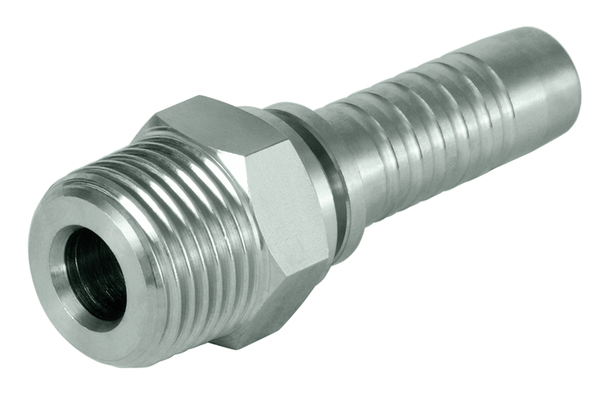

XV02BMT04
AGR conical BMT

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	BSP threaded adapter with tapered male thread

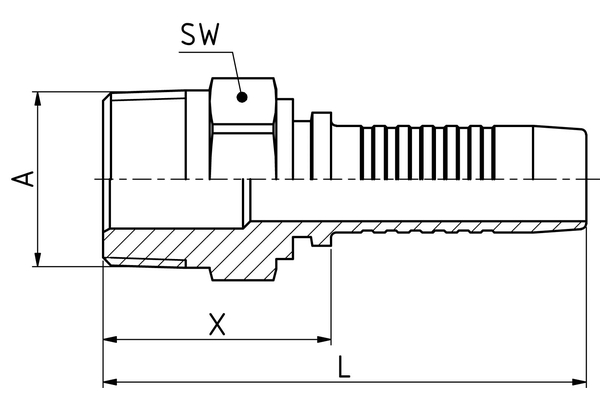

  Connection thread A:	R 1/8"
  X [mm]:	23,4
  L1 [mm]:	53,6
  SW1 [mm]:	14
  Connection name Indunorm:	BMT KONICAL
  Connection type:	AGR KONICAL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
