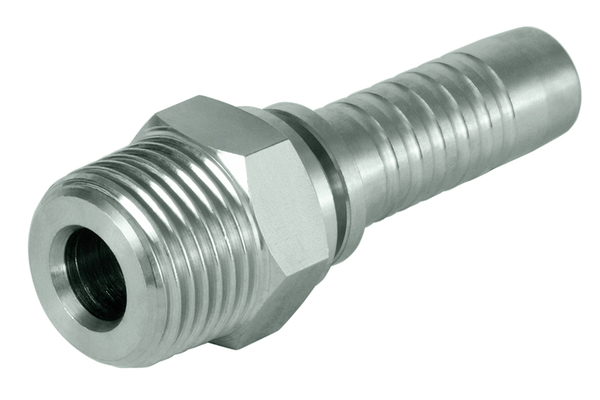

XV12BMT10
AGR conical BMT

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	BSP threaded adapter with tapered male thread
  Connection thread A:	R 3/4"
  X [mm]:	41,6
  L1 [mm]:	80,1
  SW1 [mm]:	30
  Connection name Indunorm:	BMT KONICAL
  Connection type:	AGR KONICAL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
