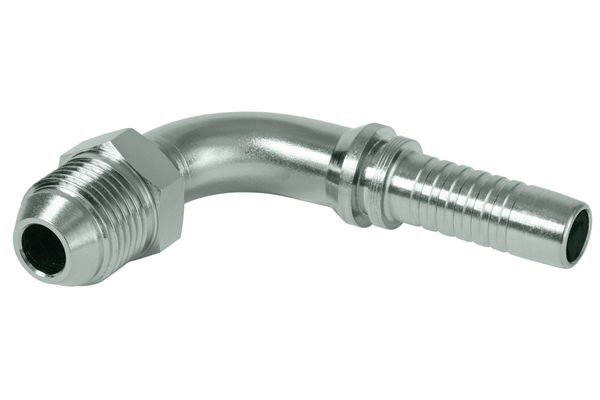

XV06BJM90S05
Toyota/Mitsubishi 90° with BSP-male thread

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	Toyota/Mitsubishi-threaded adapter, 60 ° sealing cone with BSP male thread

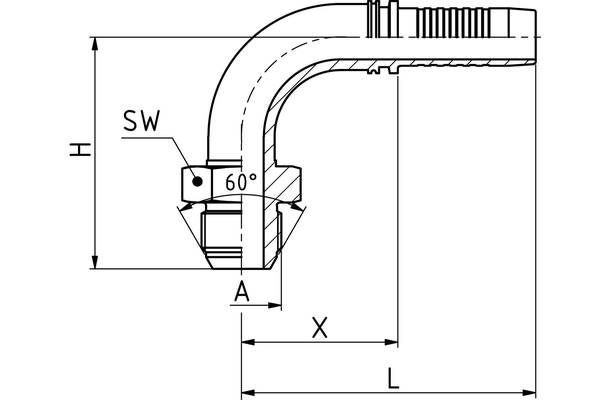

  Connection thread A:	G 3/8"
  X [mm]:	35,0
  L1 [mm]:	67,5
  H [mm]:	46,0
  SW1 [mm]:	19
  Connection name Indunorm:	BJM 90°
  Connection type:	Komatsu / Toyota 90° with BSP-male thread
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
