DKR

Similar image
Similar image

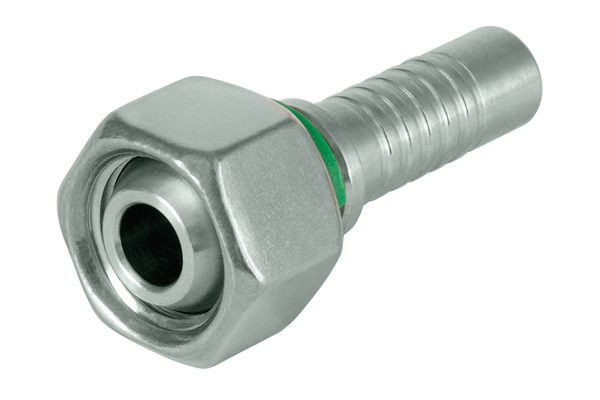

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail

Art. No.
XV02BF03
%
SALE
XV04BF03
%
SALE
XV02BF04
%
SALE
XV04BF04
%
SALE
XV06BF04
%
SALE
XV04BF05
%
SALE
XV06BF05
%
SALE
XV04BF06
%
SALE
XV06BF06
%
SALE
XV08BF06
%
SALE
XV06BF08
%
SALE
XV08BF08
%
SALE
XV10BF08
%
SALE
XV12BF08
%
SALE
XV08BF10
%
SALE
XV10BF10
%
SALE
XV12BF10
%
SALE
XV08BF12
%
SALE
XV12BF12
%
SALE
XV16BF12
%
SALE
XV16BF16
%
SALE
XV20BF16
%
SALE
XV20BF20
%
SALE
XV24BF24
%
SALE
XV32BF32
%
SALE
DN
05
05
06
06
06
08
08
10
10
10
12
12
12
12
16
16
16
19
19
19
25
25
31
38
51
Size
03
03
04
04
04
05
5
06
06
06
08
08
08
08
10
10
10
12
12
12
16
16
20
24
32
Inch
3/16
3/16
1/4
1/4
1/4
5/16
5/16
3/8
3/8
3/8
1/2
1/2
1/2
1/2
5/8
5/8
5/8
3/4
3/4
3/4
1
1
1.1/4
1.1/2
2
Thread + standard
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread

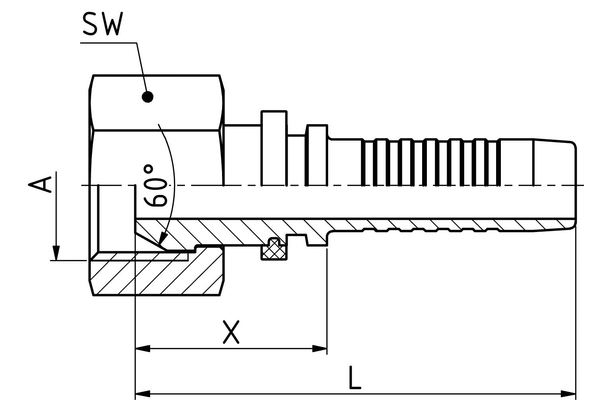

Connection thread A
G 1/8"
G 1/4"
G 1/8"
G 1/4"
G 3/8"
G 1/4"
G 3/8"
G 1/4"
G 3/8"
G 1/2"
G 3/8"
G 1/2"
G 5/8"
G 3/4"
G 1/2"
G 5/8"
G 3/4"
G 1/2"
G 3/4"
G 1"
G 1"
G 1.1/4"
G 1.1/4"
G 1.1/2"
G 2"
X [mm]
15,7
17,4
15,9
17,6
18,7
17,6
26,8
19,8
19,0
21,5
19,4
21,2
19,0
25,3
25,9
22,0
24,0
24,0
22,8
29,0
25,0
31,7
36,5
33,5
31,0
L1 [mm]
38,7
40,4
42,4
44,1
45,2
44,1
56,9
53,3
52,5
55,0
51,9
53,7
51,4
57,8
64,4
60,5
62,5
68,3
67,1
75,0
79,3
86,7
96,5
101,0
106,0
SW1 [mm]
17
19
17
19
22
19
22
19
22
27
22
27
30
32
27
30
32
27
32
38
38
50
50
55
70
Type of nut
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
L1 [mm]
75,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BF
    Connection type: DKR
    Construction form: 0°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Practical tip

"Oiling the fitting insert facilitates inserting the nipple into the hose. The lubricant can be dosed properly using the oil cushion. Available from stock with the item number OELKISSEN."
