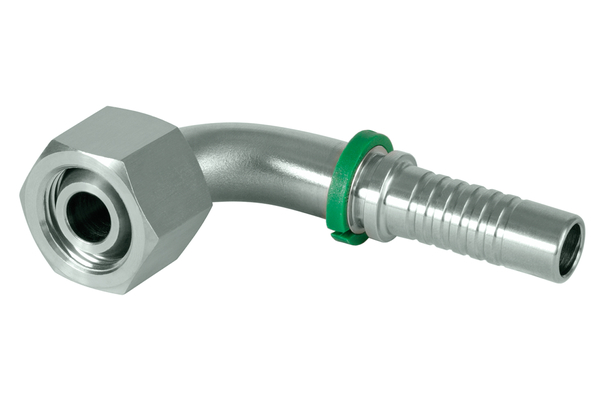

XV10B90S10
DKR 90° BF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 5/8"

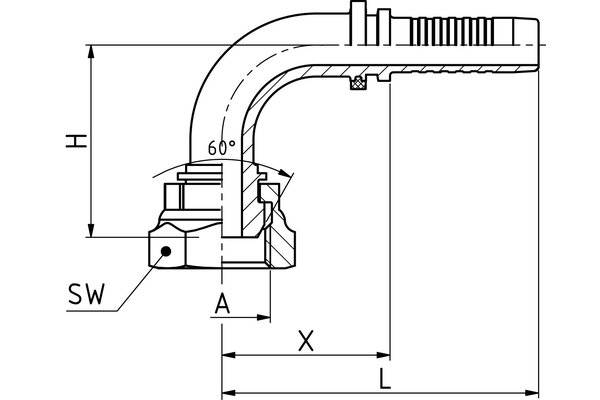

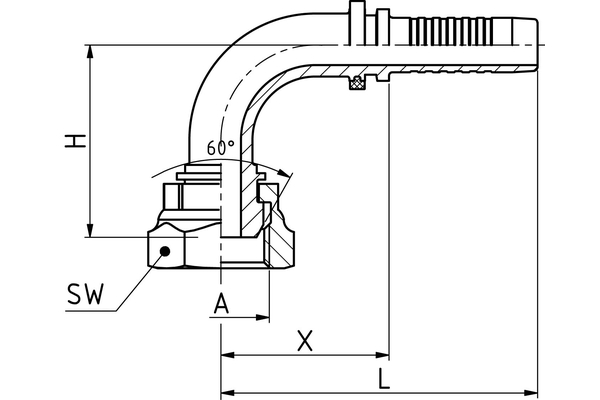

  X [mm]:	46,5
  L1 [mm]:	85,0
  H [mm]:	48,0
  SW1 [mm]:	30
  Type of nut:	CR
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
