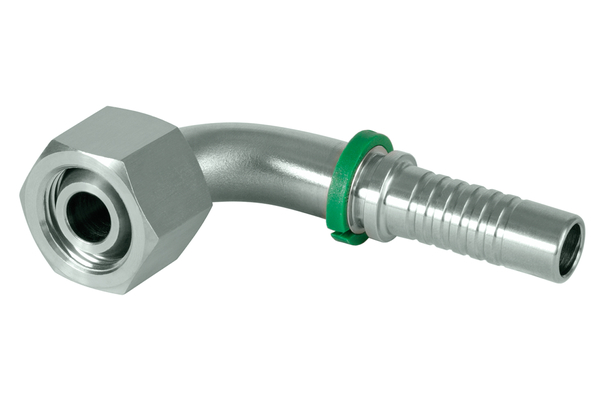

XV24B90S24
DKR 90° BF 90°

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	BSP sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 1.1/2"

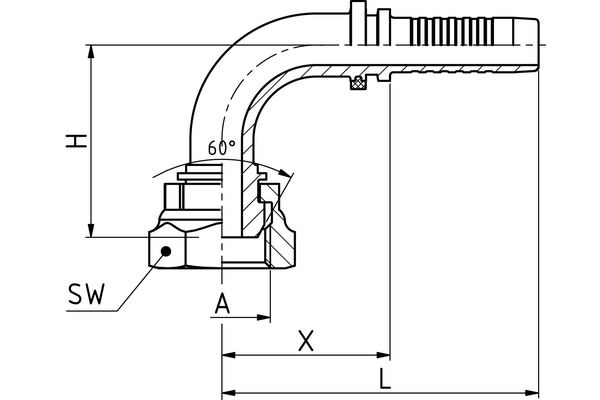

  X [mm]:	117,0
  L1 [mm]:	184,5
  H [mm]:	105,5
  SW1 [mm]:	55
  Type of nut:	ST
  Connection name Indunorm:	BF 90°
  Connection type:	DKR 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
