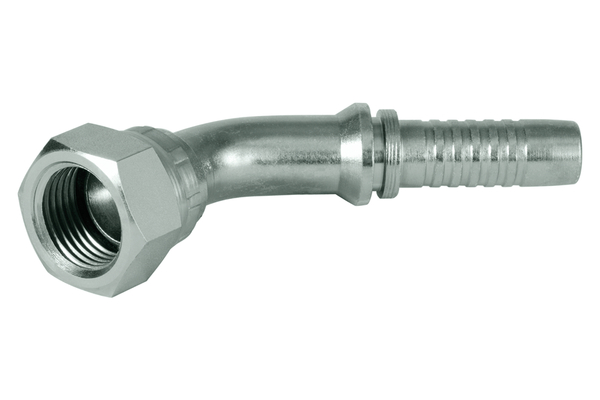

XV06BJF45S05
Toyota/Mitsubishi 45° with BSP-union nut

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	Toyota/Mitsubishi-sealing head, 60 ° cone with union nut, BSP thread

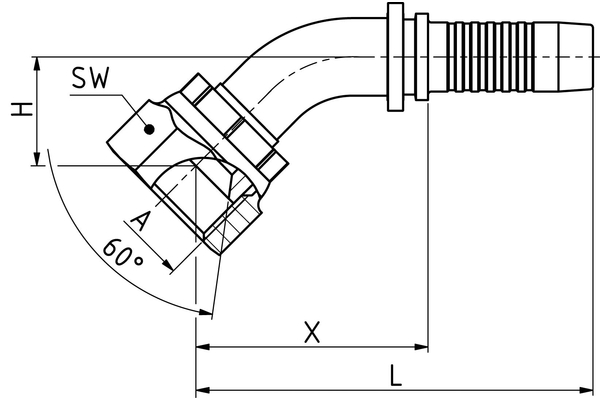

  Connection thread A:	G 3/8"
  X [mm]:	44,3
  L1 [mm]:	73,7
  H [mm]:	14,0
  SW1 [mm]:	22
  Connection name Indunorm:	BJF 45°
  Connection type:	Toyota/Mitsubishi 45° with BSP-male thread
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
