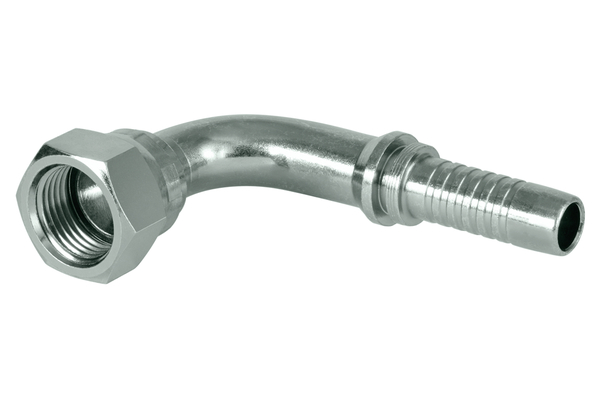

XV06BJF90S06
Toyota/Mitsubishi 90° with BSP-union nut

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Toyota/Mitsubishi-sealing head, 60 ° cone with union nut, BSP thread
  Connection thread A:	G 3/8"

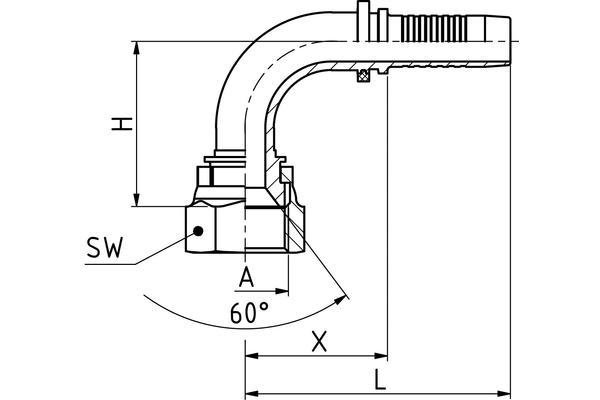

  X [mm]:	36,0
  L1 [mm]:	69,5
  H [mm]:	40,9
  SW1 [mm]:	22
  Connection name Indunorm:	BJF 90°
  Connection type:	Toyota/Mitsubishi 90° with BSP-male thread
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
