XV65MF32
DKM MF

Product info

• Technical data

  DN:	51
  Size:	32
  Inch:	2
  Thread + standard:	Universal sealing cone with union nut, metric fine thread

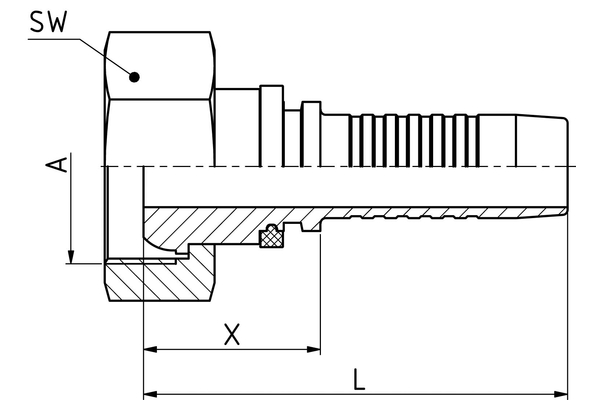

  Connection thread A:	M65x2,0
  Pipe Ø R [mm]:	50
  X [mm]:	32,5
  L1 [mm]:	107,5
  SW1 [mm]:	75
  Type of nut:	union nut
  Connection name Indunorm:	ME
  Connection type:	DKM
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
