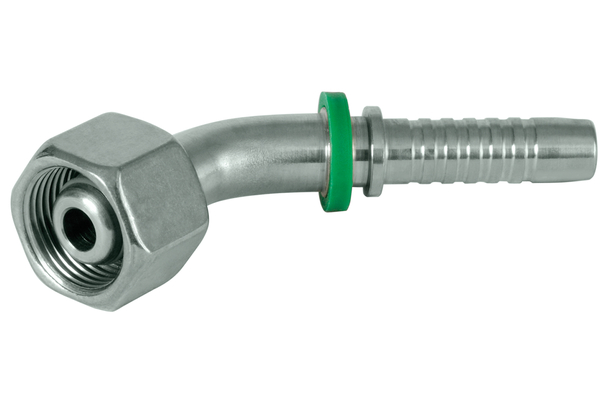

XV14MSOF08-45S05
DKOL 45° MSOF 45°

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series

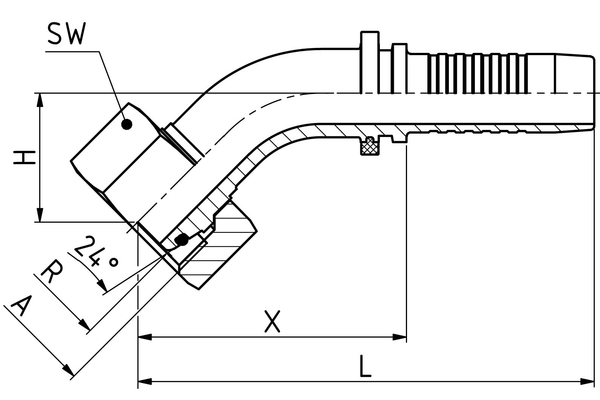

  Connection thread A:	M14x1,5
  Pipe Ø R [mm]:	8
  X [mm]:	50,0
  L1 [mm]:	80,0
  H [mm]:	20,0
  Outer diameter O-ring [mm]:	7
  Height O-ring [mm]:	1,5
  SW1 [mm]:	17
  Type of nut:	-
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOL 45°
  Construction form:	45°
  Material:	Free cutting steel
  Material O-Ring:	NBR
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
