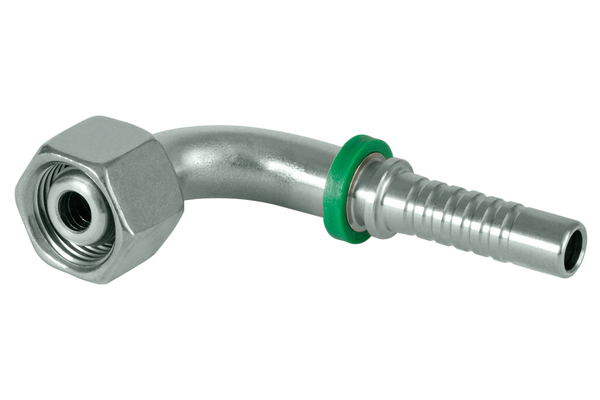

XV30MSOF22-90S10
DKOL 90° MSOF 90°

Product info

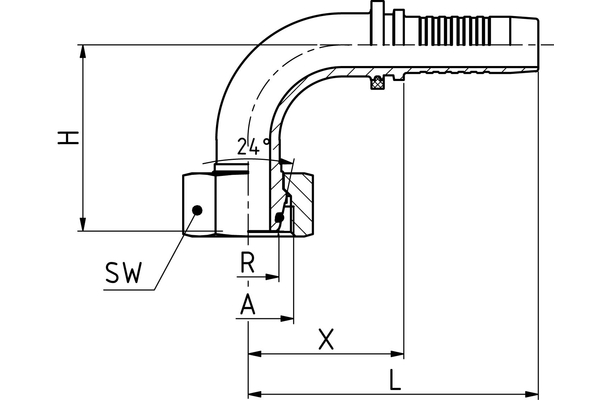

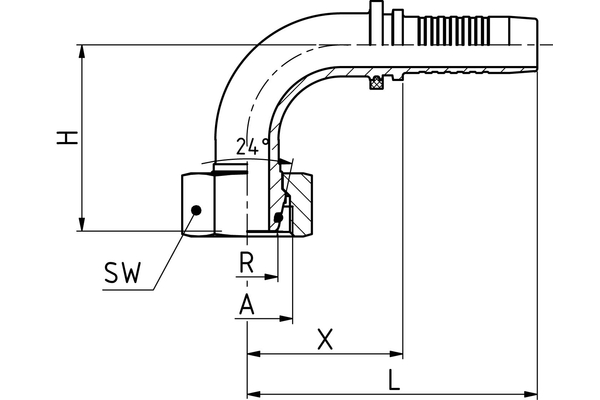

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  Connection thread A:	M30x2
  Pipe Ø R [mm]:	22
  X [mm]:	61,5
  L1 [mm]:	100,0
  H [mm]:	61,0
  Outer diameter O-ring [mm]:	20
  Height O-ring [mm]:	2,0
  SW1 [mm]:	36
  Type of nut:	union nut
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKM 90°
  Construction form:	90°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
