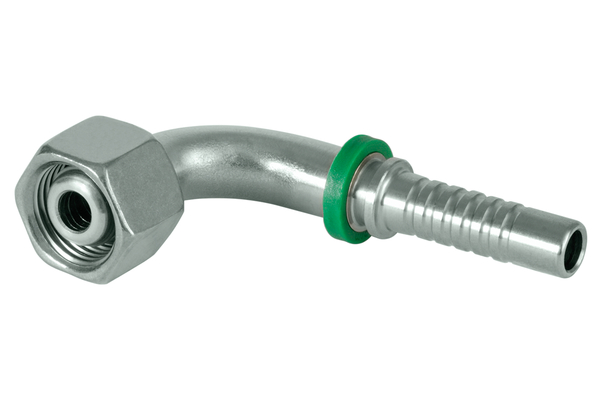

XV45MSOF35-90S24
DKOL 90° MSOF 90°

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series

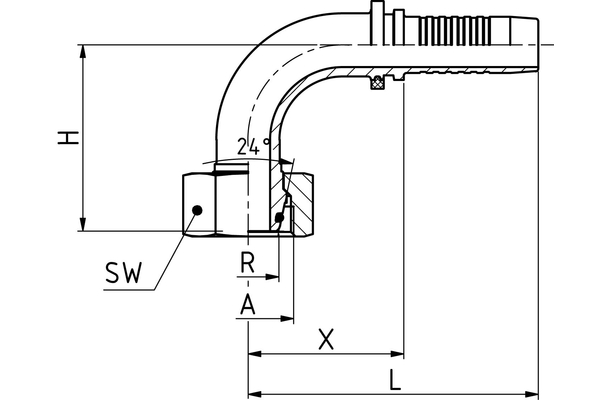

  Connection thread A:	M45x2
  Pipe Ø R [mm]:	35
  X [mm]:	93,5
  L1 [mm]:	161,0
  H [mm]:	91,0
  Outer diameter O-ring [mm]:	32
  Height O-ring [mm]:	2,5
  SW1 [mm]:	50
  Type of nut:	union nut
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKM 90°
  Construction form:	90°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
