XV14MSOF06-90S04
DKOS 90° MSOF 90°

Product info

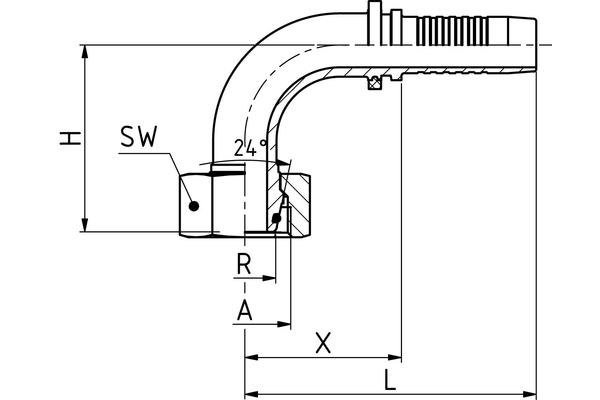

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  Connection thread A:	M14x1,5
  Pipe Ø R [mm]:	6
  X [mm]:	33,5
  L1 [mm]:	63,5
  H [mm]:	29,0
  Outer diameter O-ring [mm]:	5
  Height O-ring [mm]:	1,5
  SW1 [mm]:	17
  Type of nut:	union nut
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKOS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Material O-Ring:	NBR
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
