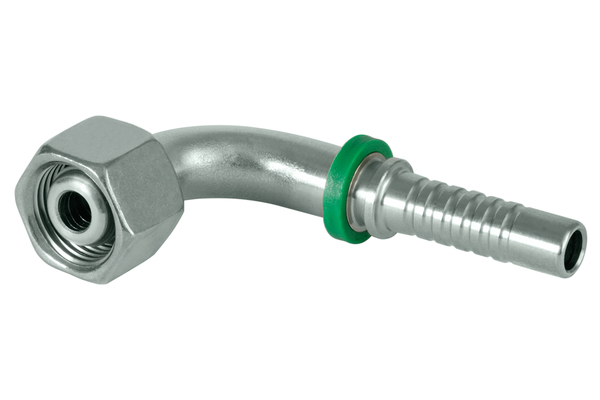

XV36MSOF25-90S16
DKOS 90° MSOF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series

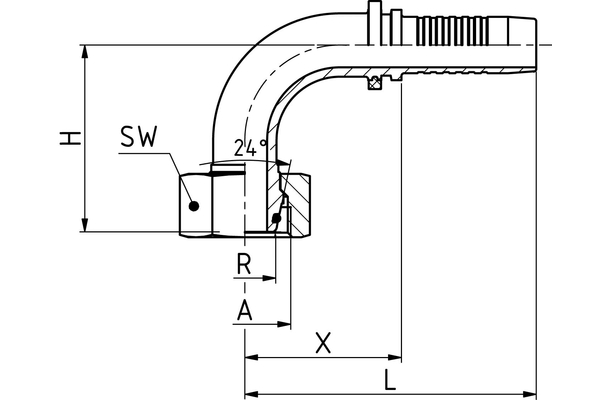

  Connection thread A:	M36x2,0
  Pipe Ø R [mm]:	25
  X [mm]:	63,5
  L1 [mm]:	118,0
  H [mm]:	64,5
  Outer diameter O-ring [mm]:	22
  Height O-ring [mm]:	2,5
  SW1 [mm]:	41
  Type of nut:	union nut
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKOS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
