Product info
-
Technical data

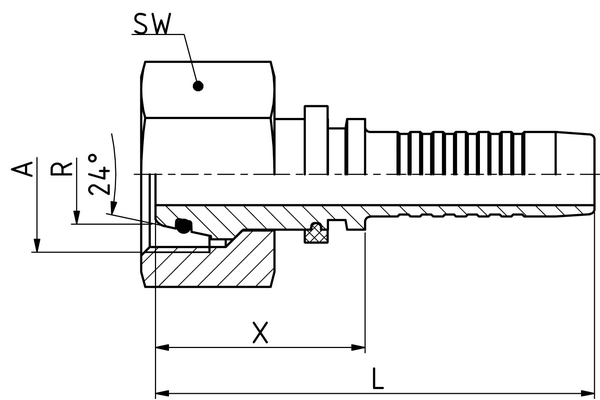

DN: 05 Size: 03 Inch: 3/16 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series Connection thread A: M16x1,5 Pipe Ø R [mm]: 8 X [mm]: 26,0 L1 [mm]: 50,5 Outer diameter O-ring [mm]: 7 Height O-ring [mm]: 1,5 SW1 [mm]: 19 Type of nut: union nut Connection name Indunorm: MSOF Connection type: DKOS Construction form: 0° Material: Free cutting steel Material O-Ring: NBR Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: Zinc-Nickel Type of fittings: Universal series XV
