XV14ME06-04
CES ME

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4

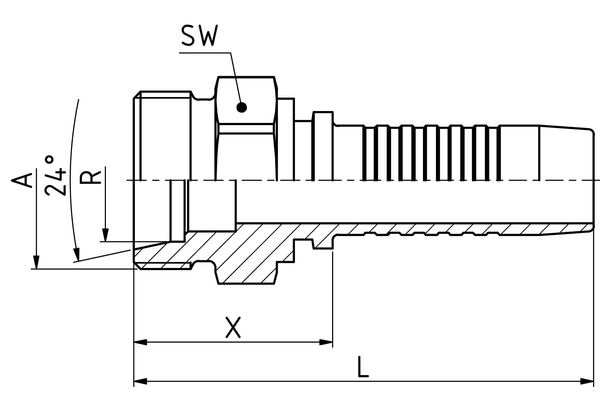

  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, heavy series
  Connection thread A:	M14x1,5
  Pipe Ø R [mm]:	6
  X [mm]:	25,7
  L1 [mm]:	55,9
  SW1 [mm]:	14
  Connection name Indunorm:	ME
  Connection type:	CES
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
